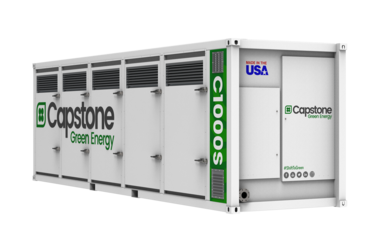

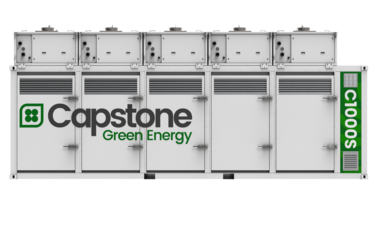

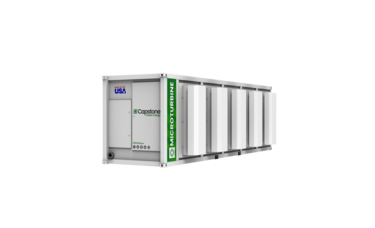

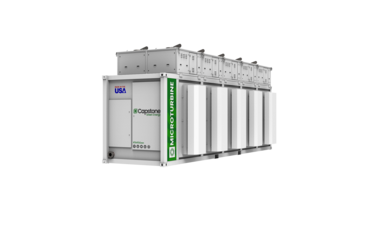

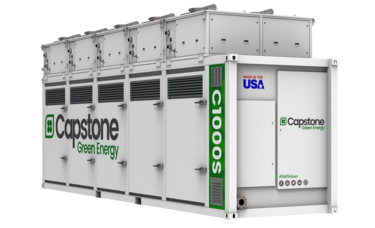

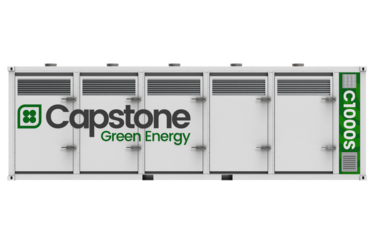

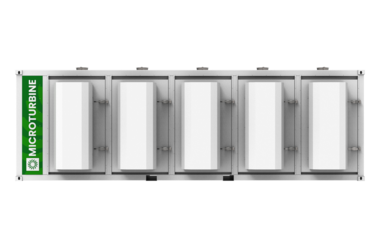

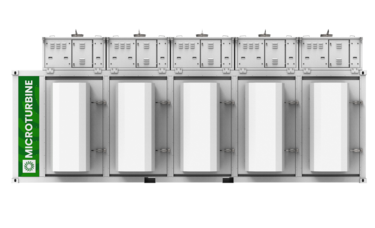

C1000S

Expandable

Can be paralleled up to 30MW of power

1,000 kW
33%
Up to 90%
400-480 VAC
50/60 Hz, Grid Connect<br>10-60 Hz, Stand Alone
3-Phase, 4-Wire Wye
3.0 m (117 in)
9.1 m (360 in)
2.9 m (114 in)
Grid Connect – 17,100 kg (37,700 lbs); Dual Mode – 20,650 kg (45,500 lbs)
10.9 MJ/kWh (10,300 BTU/kWh)
280 ºC (535ºF)
6.7 kg/s (14.7 lbm/s)
Natural Gas, Biogas (Landfill, Digester), Associated Gas, Sour Gas, LPG
C1000S Digester Gaspdf
C1000S High Pressure Natural Gaspdf
C1000S High Pressure Sour Natural Gaspdf
C1000S ICHP High Pressure Natural Gaspdf
C1000S ICHP Liquid Petroleum Gaspdf
C1000S ICHP Low Pressure Natural Gaspdf
C1000S Landfill Gaspdf
C1000S Liquid Petroleum Gaspdf
C1000S Low Pressure Natural Gaspdf
