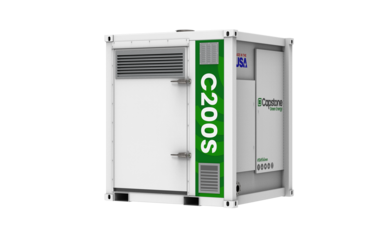

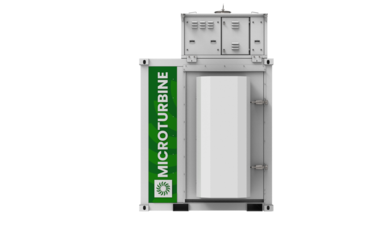

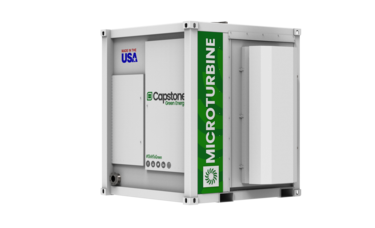

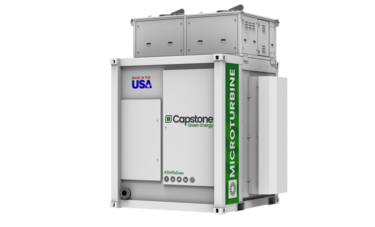

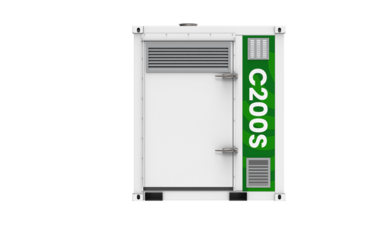

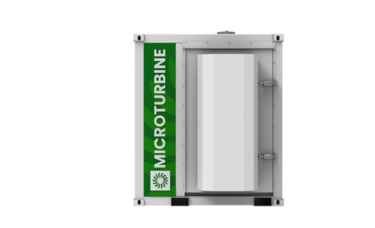

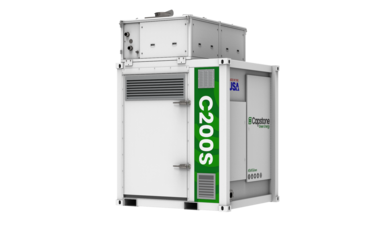

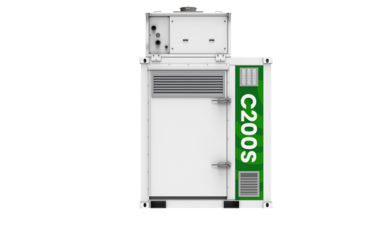

C200S

Expandable

Can be paralleled up to 30MW of power

C200S
C200S
C200S
C200S
C200S
C200S
C200S
C200S
C200S
C200S
C200S
C200S
C200S
200 kw Electrical
33%
Up to 90%
400-480 VAC
50/60 Hz, Grid Connect
3-Phase, 4-Wire Wye
3.0 m (117 in)
2.5 m (100 in)
3.8 m (148 in)
Grid Connect – 6,000 kg (13,200 lbs); Dual Mode – 6,700 kg (14,700 lbs)
10.9 MJ/kWh (10,300 BTU/kWh)
280 ºC (535ºF)
1.3 kg/s (2.9 lbm/s)
Pipeline Natural Gas

Notes

  1. Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
  2. Height dimensions are to the roofline. Exhaust outlet can extend up to 9.5 inches above the roofline.
  3. Specifications based on high pressure natural gas systems. Values may vary with other fuel types.


Specifications are not warrantied and are subject to change without notice.

C200S Digester Gaspdf
C200S High Pressure Natural Gaspdf
C200S HP Sour Natural Gaspdf
C200S ICHP High Pressure Natural Gaspdf
C200S ICHP Liquid Petroleum Gaspdf
C200S ICHP Low Pressure Natural Gaspdf
C200S Landfill Gaspdf
C200S Liquid Fuelpdf
C200S Liquid Petroleum Gaspdf
C200S Low Pressure Natural Gaspdf
